Our team at Electrician Ampang has handled the complete water heater installation process for properties across the Klang Valley since 2011. You probably know the frustration of needing a quick bathroom fix but worrying about messy wiring.
We see this exact concern daily when property owners schedule their crucial plumbing upgrades.
A proper, safe setup actually follows a very predictable timeline if managed correctly. Let’s examine the actual data and explore a few practical ways to plan your day.
How long the job takes
Most homeowners want one simple answer: what is the exact water heater installation time? Our standard installs for instant units like a Joven or Panasonic take one to two hours. The existing pipework and wiring simply need to be disconnected and reattached to the new unit. We find that this direct replacement is always the absolute quickest route.
Complications arise when starting completely from scratch. Our brand-new installations require routing a fresh 4mm² cable directly from your Distribution Board box. This extended electrical process pushes the total completion time closer to four hours. We will gladly assess your layout and provide a clear timeline if you book through our water heater installation service.
This careful planning ensures you are never left without hot water overnight. Our ultimate goal is always to finish everything in a single, efficient visit.
The steps of the water heater installation process
The water heater installation process follows a strict sequence to ensure total safety and reliability. We adhere strictly to the latest Energy Commission (Suruhanjaya Tenaga) guidelines for every single job.
These regulated water heater installation steps prevent common hazards like electrical shocks or melted wires. Our technicians never skip a single phase during the scheduled appointment:

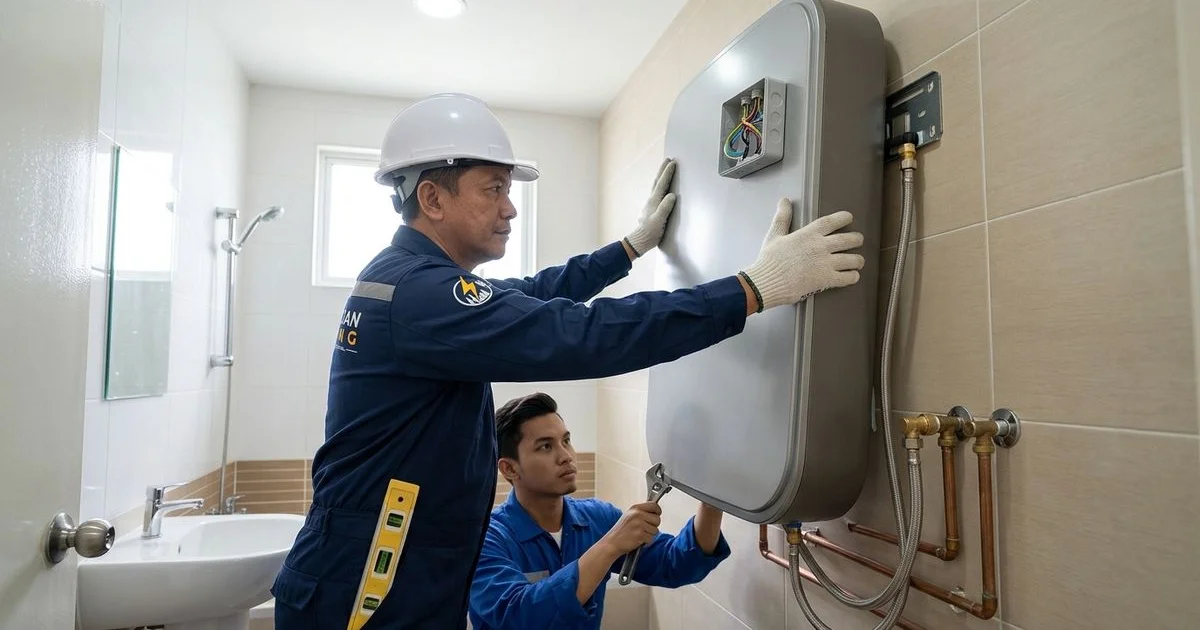

- Mounting. The unit is fixed firmly to the bathroom wall using heavy-duty masonry anchors. We ensure these anchors are rated for the full weight of the tank when completely filled with water.

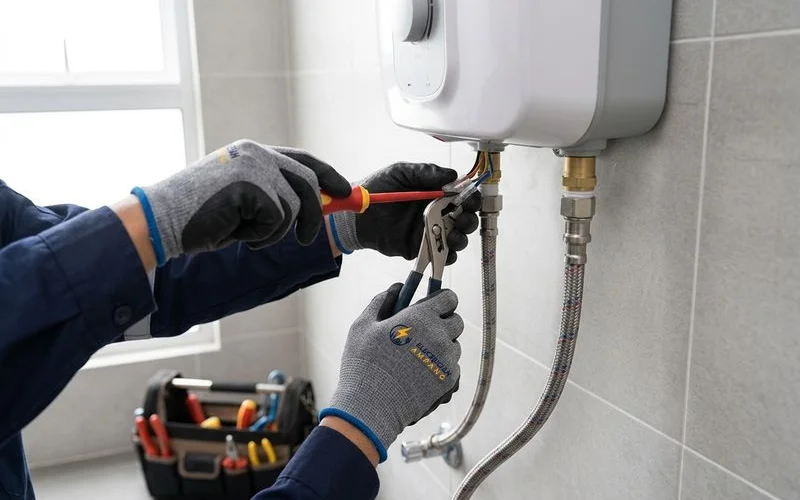

- Wiring. The electrical connection is undeniably the most critical phase of the job. Our installers run a dedicated circuit and fit a mandatory 20A double-pole (DP) switch.
- Plumbing. Secure, watertight fittings connect the cold water inlet to the hot water outlet. We also attach the essential pressure relief safety valve to prevent dangerous tank over-pressurization.
- Testing. The final step involves filling the tank completely before switching on the power. Our team checks for micro-leaks, tests the 10mA Residual Current Device (RCD), and confirms the heating element works perfectly.
Testing is not a formality
We do not call a job done until we have run the heater and watched it work. Testing catches a slow leak or a wiring fault before it becomes your problem.
The wiring step is exactly why you need a licensed professional instead of a general handyman. We know from experience that using a standard 13A plug for a 3.6kW heater is a major fire hazard. If you want the detailed breakdown on why this matters, see our guide on water heater electrical safety.
Do you need a pressure pump
A water heater requires a minimum flow rate of about two liters per minute just to activate the heating sensor. Our assessments often reveal that older Malaysian homes or upper-floor condo units simply lack this required mains pressure.
A dedicated water pressure pump fixes this frustrating issue by aggressively boosting the flow directly to your showerhead. We often recommend upgrading to a reliable heater with a built-in DC silent pump. These modern built-in DC pumps use significantly less electricity than older AC models while remaining whisper-quiet. Our technicians will thoroughly test your exact water flow during the on-site check.
You can easily compare the basic differences between a standard setup and a pumped system below:
| Feature | Standard Water Heater | Heater with DC Pump |
|---|---|---|
| Best For | Ground floors, high mains pressure | Upper floors, older plumbing |
| Noise Level | Completely silent | Barely audible (under 40dB) |
| Water Flow | Dependent on city supply | Consistently strong |
| Cost Impact | Base unit price | Adds roughly RM150 to RM250 |
We never push an expensive external pump system if your current water pressure is already perfectly fine. This upfront honesty saves you money and keeps the entire setup process delightfully simple.
What to prepare before the visit
You can help the actual installation day go much smoother by completing a few quick preparation steps. Our team greatly appreciates a tidy workspace because it drastically reduces the time you spend without hot water.
- Have the unit ready. Keep the new heater in its box to prevent scratches. We can also supply a proven, energy-efficient model like a Joven or Centon if you prefer.
- Clear the area. The installation zone must be free of toiletries and decorative shelves. Our technicians need at least three feet of clear workspace around the mounting spot to manoeuvre tools safely.
- Decide the position. Think carefully about showerhead reach, floor drainage, and exactly where the outside DP switch should sit. We require the main water supply and electricity to be disconnected for about 30 to 45 minutes during the connection stage.
A standard water heater installation process is a completely safe and straightforward job when handled by a licensed professional. Our strict adherence to proper wiring protocols guarantees your family’s safety and long-term peace of mind.
Book an on-site check today to secure your premium spot on the weekly schedule. We will confidently confirm the timeline, the exact position, and whether a pump is genuinely needed before any work begins.
