We started Electrician Ampang back in 2011 under New Era Air Cond & Electrical, and since then, we have inspected thousands of homes across the Klang Valley. Most property owners only think about their wiring when a breaker trips or a new appliance needs installing.
You might have noticed a slight buzz near the distribution box, but these small quirks often hide much bigger risks. Our team is going to explain the most common electrical hazards in Malaysian homes that we encounter every week.
This guide will walk you through the practical signs of unsafe home wiring and show you exactly how to protect your property.

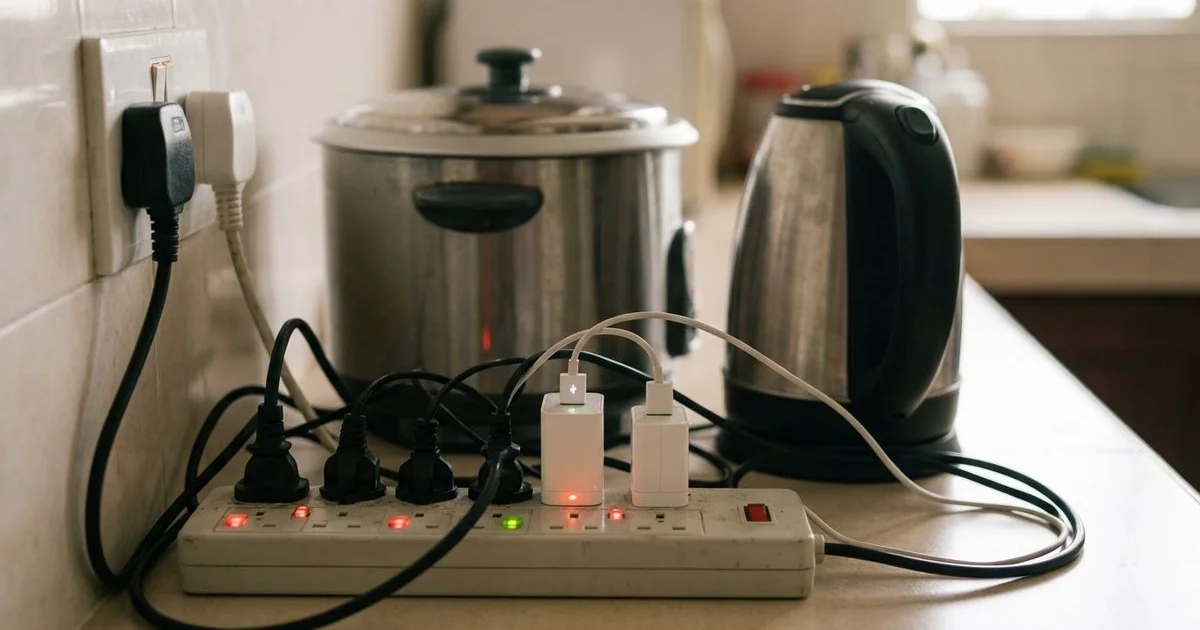

Overloaded sockets and trailing extension leads
The most common electrical hazard in Malaysian homes is an overloaded socket caused by plugging too many devices into a single multi-plug adaptor. One wall socket often ends up feeding a TV, a router, a fan, and a phone charger all at once. Each socket and circuit is rated for a set amount of current, and pushing past that limit causes the wiring to heat up rapidly.
A standard 13-amp Malaysian wall socket is designed to handle a maximum load of about 3120 watts safely. Many homeowners unknowingly exceed this limit by daisy-chaining extension leads to run heavy appliances like irons or air fryers. The Malaysian Fire and Rescue Department (Bomba) reports that electrical faults cause over 1,700 fire incidents annually.
Trailing extension leads highlight these overloaded socket dangers perfectly. A long cable tucked under a rug or pinned behind furniture cannot release heat properly. Heat builds up continuously where you cannot see it until the plastic starts to melt.
How to prevent socket overloads
Our technicians recommend a few simple rules to keep your living space safe.
- Calculate your wattage: Never plug two high-heat appliances, like a kettle and a microwave, into the same power point.
- Check for the ST-SIRIM label: Only buy extension leads approved by Suruhanjaya Tenaga to ensure they meet local safety standards.
- Install new points: If a room is always short on outlets, ask an electrician to add a properly wired socket instead of stacking adaptors.
Following these steps will significantly reduce the strain on your daily electrical usage.
Ageing wiring and brittle insulation
Ageing wiring becomes a major hazard when the plastic insulation dries out, cracks, and crumbles inside your walls. Cable insulation is the protective coating that keeps live wires apart, but it definitely does not last forever.
In older Klang Valley homes, decades of tropical heat cause this rubber or PVC material to fail. Once the casing goes brittle, bare copper conductors can touch each other and short out.
The Suruhanjaya Tenaga (Energy Commission) notes that standard PVC electrical wiring has a safe lifespan of roughly 25 years. Homes wired before the year 2000 are currently at the highest risk for hidden insulation failure. Some very old properties still contain fabric or rubber insulated cables, which are well past their safe operational life.
Old wiring rarely fails loudly
It gives small hints first, like a warm socket or an odd smell, long before it becomes a real danger.
You cannot easily judge the condition of these cables just by looking at the wall sockets. The actual deterioration happens completely out of sight inside your ceilings and concrete walls.
If your property is older and has never been upgraded, a full wiring inspection is a smart investment. Our team uses specialised testing meters to check the insulation resistance of your entire house. This process reveals hidden current leaks without requiring anyone to break open your plaster ceilings.
Missing earth or shock protection
Missing earth protection means your home lacks a proper grounding path and a working safety switch, leaving you exposed to severe electric shocks. Earth is the dedicated safety wire that carries a stray fault current away into the ground instead of passing it through a person. The Residual Current Circuit Breaker (RCCB) in your distribution board is designed to cut power instantly when it detects this dangerous leakage.
Older homes frequently lack a proper earth connection or have an outdated, faulty breaker switch. Without these safeguards, a malfunctioning metal appliance can deliver a dangerous or fatal shock. This risk is highest in wet areas like bathrooms and kitchens, where water and electricity mix closely.
Modern standards for water heaters
We frequently find that homeowners are unaware of current safety regulations for wet areas. Suruhanjaya Tenaga specifically mandates that all water heaters must be protected by a highly sensitive 10mA RCCB.
- Standard household circuits: Usually protected by a 30mA or 100mA breaker at the main board.
- Water heater circuits: Require the much stricter 10mA breaker to prevent electrocution in the shower.
- Older properties: Many houses built before 2013 were constructed without this dedicated 10mA protection.
Upgrading your distribution board to meet these modern standards is a straightforward job. If you are unsure about your current shock protection setup, you should get it checked immediately — our guide on what to expect from an on-site electrical check explains how that visit works. An experienced electrician can test your DB box in minutes to confirm if your RCCB trips at the correct threshold.
Warning signs and when to inspect

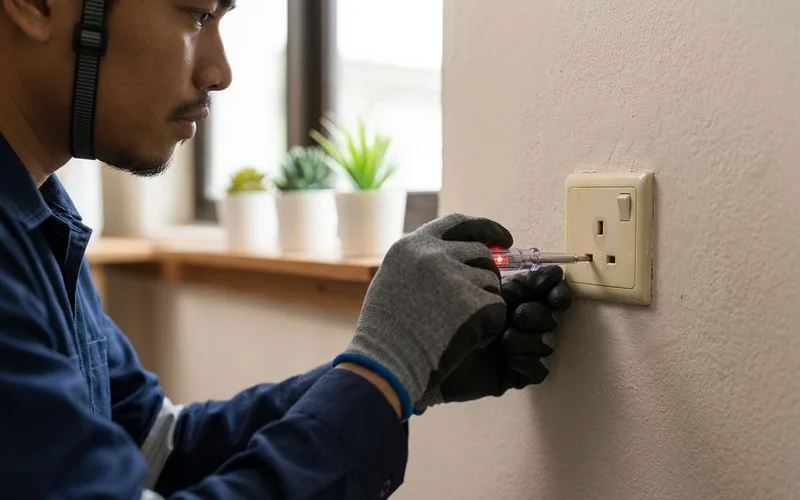

You should call for an inspection immediately if you notice scorch marks, warm switch plates, or a persistent burning smell near any power point. Some hazards give clear physical warnings before they cause a fire or a total power failure. Catching these early signs is the most effective way to prevent costly property damage.
Here is a checklist of common red flags to watch for in your home:
- Sockets or switch plates that feel unusually warm to the touch.
- Brown or yellow discolouration around a white socket faceplate.
- A faint fishy smell near a point or the distribution box.
- A buzzing or humming sound coming from the breakers.
- Lights that flicker or dim sharply when a heavy appliance switches on.
- Breakers that trip repeatedly during normal daily use.
A burning smell from a socket is the most urgent of these warning signs and should always be treated as an emergency. The distinct fishy odour actually comes from heat-resistant plastics melting under extreme electrical stress. Other symptoms still require professional attention, just not necessarily in the very same hour.
Spotting a hazard early keeps your family safe and minimises repair costs. If you have noticed any of these issues, contact our emergency electrical troubleshooting team to find the fault and secure the circuit.
We waive the flat RM50 check fee completely when you accept the repair quotation. This policy ensures you get a clear, honest answer without worrying about hidden diagnostic charges, so reach out today to schedule your safety inspection.
