We know that the thought of ripping open walls for a rewire is enough to make anyone nervous. Many homes in Malaysia, especially those older properties built in the 1980s, are still running on outdated wiring that cannot handle modern appliances. This aging infrastructure often leads to tripped breakers or hidden fire risks.
Figuring out how long does house rewiring take is the first step to getting your property back to a safe standard. A clear schedule makes the entire process much easier to manage.
Let us walk through the realistic timeline, the messy stages, and how you can prepare your family for the rewiring disruption.
A Realistic Timeline by Property Size
One of the first questions homeowners ask is how long does house rewiring take for their specific floor plan. A standard rewire usually requires between four to six days, depending entirely on your property type. Small condo units might finish in three days, while a large bungalow could stretch well over a week.
We base these estimates on the complexity of the cable routes and the number of power points required. A single-storey terrace house is quite straightforward, but adding heavy appliances like induction hobs or multiple air conditioners changes the scope. The Suruhanjaya Tenaga (Energy Commission) requires careful load planning for these high-draw items, which adds a little time to the initial assessment.
Our team at Electrician Ampang often deals with hidden surprises in older homes once the work begins. Concealed wiring takes significantly more time to replace than simple surface trunking. Older properties might have deteriorated conduits that need complete replacement before new cables can be pulled through safely.
Here is a general guide to help you plan your schedule based on typical Malaysian property sizes:
| Property Type | Estimated Duration | Common Complexity Factors |
|---|---|---|
| Apartment / Condominium | 2 to 4 days | Strict management working hours |
| Single-Storey Terrace | 4 to 6 days | Roof space access, old fuse boxes |
| Double-Storey Terrace / Bungalow | 7 to 10+ days | Multiple DB boards, three-phase upgrades |
Our house rewiring service gives you a clear duration estimate after the on-site check, so you can plan your week around it. Having this house rewiring timeline confirmed upfront removes a lot of the guesswork.
The Stages of a Rewiring Job
A rewire is not one single task but rather a series of structured steps. The process runs through three main phases: planning, the first fix, and the second fix. Knowing these rewiring stages helps you picture exactly what is happening in your home each day.
We follow a strict sequence to keep the project on track:
- Planning and Assessment: Mapping out daily routines and agreeing on socket placements.

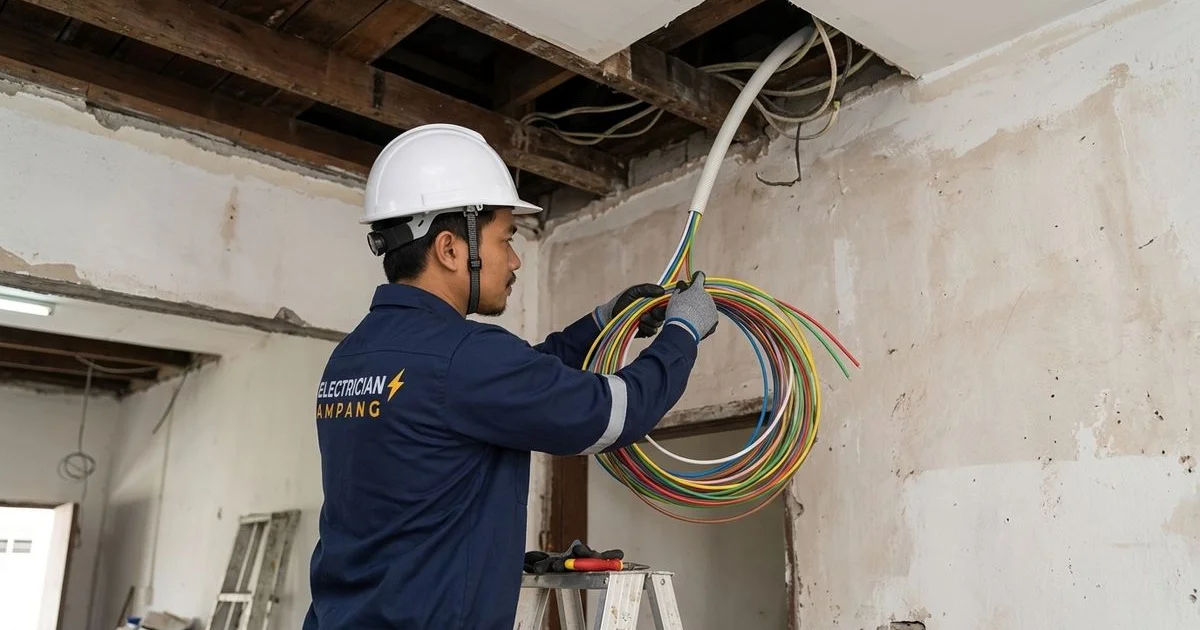

- The First Fix: Hacking walls to remove old cables and laying new PVC conduits.
- The Second Fix: Patching walls, fitting switches, and installing SIRIM-approved sockets.
- DB Box Installation: Setting up the main panel with mandatory RCCB protection.
The physical work is always the noisiest and dustiest part of the job. You will see a lot of debris during the first fix, but this clears up once the new cables are safely routed.
Our final step is configuring the Distribution Board to handle your specific power loads. These modern protective devices are essential to cut power instantly if a fault occurs, protecting your family from electric shocks.
Each stage is checked before the next
A rewire is done in a set order for a reason. Wiring is verified at each step, so problems are caught early rather than hidden behind a finished wall.
Power-Down Periods and Living Through It
A common worry is whether you can stay in your home while the team replaces the cables. You can usually remain on the property, but you must be prepared for scheduled power cuts. The technicians will need to shut off the main supply at specific times to safely connect new circuits to the DB box.
We plan these power-down periods carefully to minimise the impact on your daily routine. You can manage the downtime by preparing a few simple workarounds:
- Charge devices early: Keep power banks ready for phones and laptops.
- Plan meals ahead: Avoid relying on electric stoves or microwaves during working hours.
- Isolate sensitive equipment: Unplug expensive electronics to protect against sudden power surges when the supply returns.
Living through a full-house upgrade requires a bit of patience, especially during hot afternoons without air conditioning. Some families choose to move out for a few days, particularly if they have young children or elderly relatives who need a quiet environment.
Our experience shows that living in a strata property adds another layer of scheduling. If you live in a condominium, your Joint Management Body (JMB) will strictly limit noisy hacking work. Most management offices in Malaysia only permit loud renovation tasks from 9:00 AM to 5:00 PM on weekdays, banning work entirely on weekends.
If you live in a landed property, the rules are slightly more flexible, but the noise will still be significant. Our guide on rewiring older terrace houses covers how the property type affects the work. Reading through it helps set the right expectations before the crew arrives.
Clean-Up and Final Testing
The final stage is just as important as the initial planning phase. Once all the wiring and fittings are in place, the electrician carries out a full series of tests on every single circuit. This testing process confirms that the earth, the insulation, and the protective devices all meet strict safety standards.
We use specialised instruments to perform an insulation resistance test, commonly known as a Megger test. This step is critical because it verifies several safety points:
- Cable Integrity: Confirms no wires were damaged during installation.
- Earth Fault Readiness: Ensures your new RCCB will trip instantly during a current leak.
- Load Capacity: Checks that the new circuits can handle your heavy appliances.
A professional finish also means taking proper care of the physical workspace. The site should be left tidy, with all stripped wires, old plastic components, and plaster debris cleared away.
Our team finishes every job this way, backing the installation with a 7-day service guarantee. This ensures that any minor settling issues, like a stiff switch or an unlabelled breaker, can be sorted out quickly and without hassle.
Knowing how long does house rewiring take upfront lets you coordinate the job with less stress.
A complete electrical overhaul requires time and patience, but the result is a safe, modern system built to handle your daily energy needs.
Contact your licensed electrician today to schedule an inspection and get a firm timeline for your property.
